Ni-Zn Material for EMI-suppressor

日期：2014/3/7

 If what you need is not listed below, please don't hesitate to contact us

  • Direct Factory Price
  • 20-year Produce Experience
  • High frequency and low-loss
  • 3-time Quality Test
  • RoSH,SGS
  • Supply both  the ferrite core and bobbin.



Ni-Zn射频阻抗类铁氧体材料特性



Ni-Zn Material for EMI-suppressor



No

特性

初始磁导率

频率范围

比温度系数

居里温度

电阻率

密度









原牌号

Property

Initial

permeability

Frequency

Range

Relative

Temp coeft

Curie

Temp

Electrical

resistivity

Specific

Gravity

Unit

±25%

MHz

PPM/°C

(20～60°C)

°C

Ω•m

g/cm3

Symbot

uiac

f

αur

Tc

ρ

d

1

JPZ 1.5K

1500

1～500

0～3

≥110

105

5.0

JPR362

2

JPZ 1K

1000

1～500

2～5

≥120

105

5.0

JPR361

3

JPZ 5H

500

1～500

8～15

≥130

105

4.8



4

JPZ 4H

400

1～500

10～20

≥130

104

4.6

JPR391

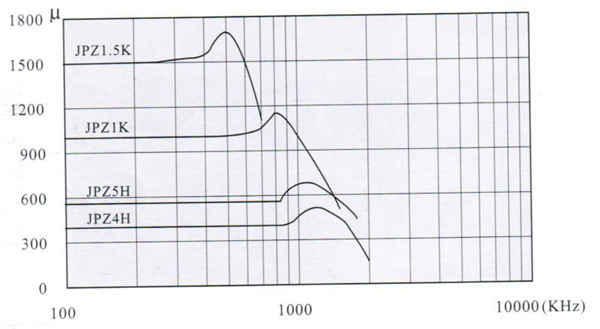

Permeability vs. Frequency

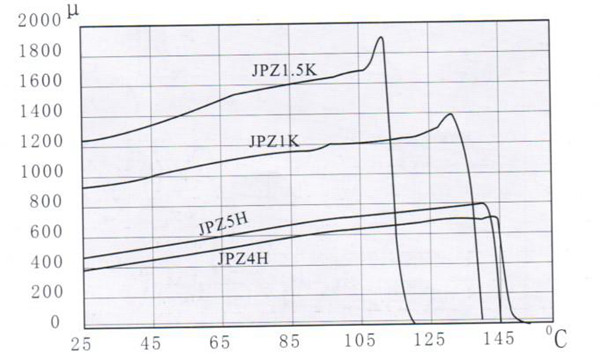

Permeability vs. Temperature





Remark: All the impedance data is the minimum impedance for the frequence.Tested by the instrument HP4287A with the coil φ0.5x120mm,1/2Ts
