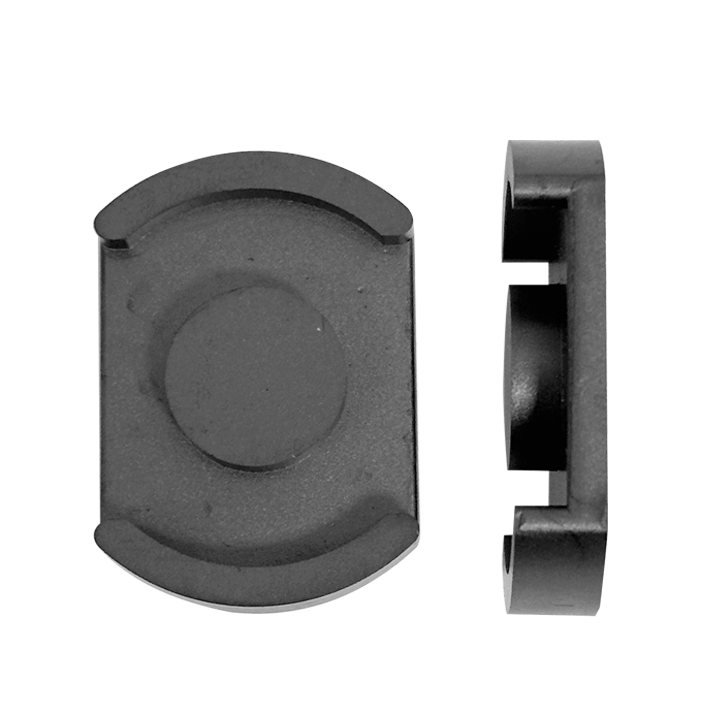

POT Ferrite Core

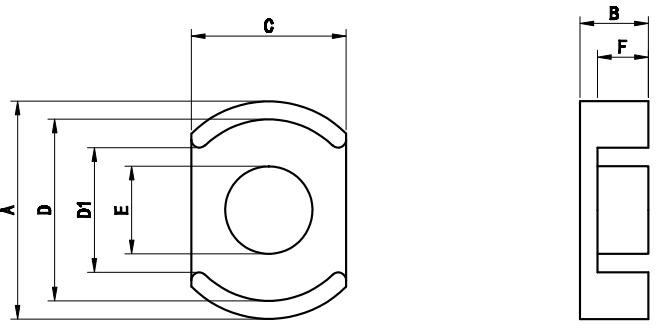

型号

A

B

C

D1

D

E

F

POT34/14

33.80±0.50

7.30±0.30

24.0±0.40

20.00min

27.50min

13.50±0.30

4.50±0.30

POT40/20

39.8±0.5

10.0±0.3

28.3±0.4

22.3min

32.7min

16.0±0.2

7.0±0.3

POT40/25

39.8±0.5

12.5±0.3

28.3±0.4

22.3min

32.7min

16.0±0.2

9.5±0.3

Le(mm)

Ae(mm2)

Ve(mm3)

POT34/14

43.55

142.0

6210

POT40/20

56.40

213.3

12033

POT40/25

65.50

210.0

13759
