UU(UU=UF) Ferrite Core
If what you need is not listed below, please don't hestitate to contact us.
- Direct Factory Price
- 20-year Produce Experience
- High frequency and low-loss
- 3-time Quality Test
- RoSH,SGS
- Supply both the ferrite core and bobbin.
UU磁芯
UU CORES

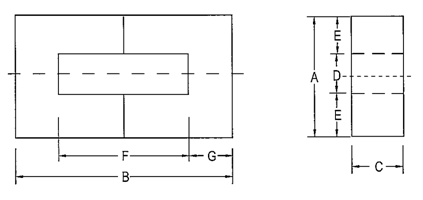

尺寸（Dimensions）
| 规格 （Type） | 尺 寸（Dimensions） (unit:mm) | ||||||
| A | B | C | D | E | F | G | |
| UU9.8/14 | 9.80±0.20 | 14.20±0.20 | 2.70±0.20 | 4.20±0.20 | 2.80±0.10 | 8.40±0.40 | 2.90±0.10 |
| UU10.5/16 | 10.50±0.30 | 15.80±0.40 | 5.00±0.30 | 5.50±0.30 | 2.50±0.20 | 10.80±0.40 | 2.50±0.20 |
| UU16/20 | 16.00±0.30 | 20.00±0.40 | 6.00±0.15 | 6.85±0.20 | 4.57±0.20 | 12.00±0.30 | 4.00±0.15 |
磁芯参数（Core Set Parameters）
| 规格（Type） | C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | W(g/set) |
| UU9.8/14 | 4.46 | 34.1 | 7.65 | 260.87 | 1.3 |
| UU10.5/16 | 3.27 | 40.5 | 12.4 | 502.20 | 2.5 |
| UU16/20 | 2.0 | 51.2 | 25.6 | 1310.72 | 6.7 |
磁芯性能（Electrical Characteristics）
| 规格 （Type） | 材料（Material） | ||||||
| PC30 | PC40 | PC44 | PC45 | 5K | 7K | 10K | |
| AL | AL | AL | AL | AL | AL | AL | |
| UU9.8/14 | 520 | 480 | 500 | 520 | 930 | 1300 | 1600 |
| UU10.5/16 | 750 | 690 | 720 | 750 | 1220 | 1650 | 2400 |
| UU16/20 | 1080 | 1000 | 1040 | 1080 | 2160 | 2800 | 3600 |
AL-value( n H/ ±25%):1kHz,0.25V,100Ts,25±3ºC
10K AL:±30%
