PQ Ferrite Core
If what your need is not listed below, please don't hestitate to contact us.
- Direct Factory Price
- 20-year Produce Experience
- High frequency and low-loss
- 3-time Quality Test
- RoSH,SGS
- Supply both the ferrite core and bobbin.
PQ磁芯
PQ CORES

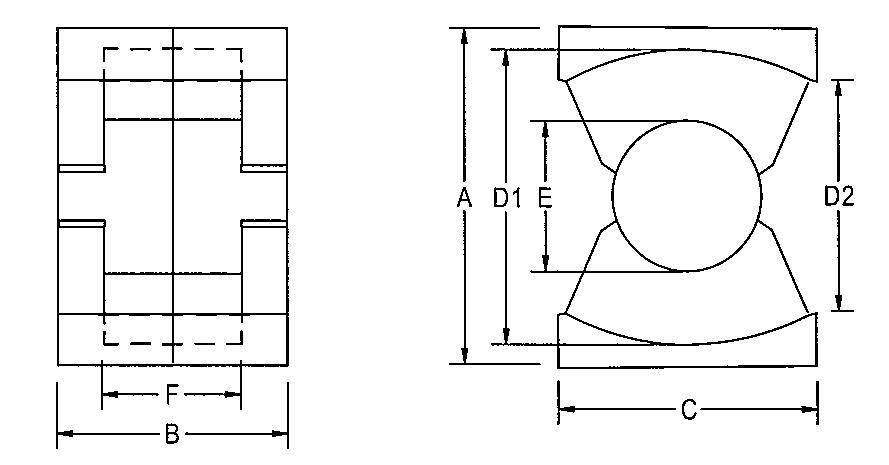

尺寸（Dimensions）
| 规格 （Type） |
| 尺 寸（Dimensions） (unit:mm) | |||||
| A | B | C | D1 | D2 | E | F | |
| PQ20/16 | 20.50±0.40 | 16.20±0.20 | 14.00±0.40 | 18.00±0.40 | 13.30min | 8.80±0.20 | 10.30±0.20 |
| PQ20/20 | 20.50±0.40 | 20.20±0.20 | 14.00±0.40 | 18.00±0.40 | 13.30min | 8.8±0.2 | 14.30±0.20 |
| PQ26/20 | 26.50±0.45 | 20.15±0.25 | 19.00±0.45 | 22.50±0.45 | 15.50min | 12.00±0.20 | 11.50±0.30 |
| PQ26/25 | 26.50±0.45 | 24.75±0.25 | 19.00±0.45 | 22.50±0.45 | 15.50min | 12.00±0.20 | 16.10±0.30 |
| PQ27/20 | 27.24±0.45 | 20.64±0.25 | 19.10±0.45 | 23.14±0.45 | 17.68 min | 12.00±0.20 | 12.00±0.30 |
| PQ32/20 | 32.00±0.50 | 20.55±0.25 | 22.00±0.50 | 27.50±0.50 | 19.00min | 13.45±0.25 | 11.50±0.30 |
| PQ32/25 | 32.00±0.50 | 25.64±0.25 | 22.00±0.50 | 27.30±0.50 | 20.50 min | 13.14±0.25 | 16.6±0.30 |
| PQ32/30 | 32.00±0.50 | 30.35±0.25 | 22.00±0.50 | 27.50±0.50 | 19.00min | 13.45±0.25 | 21.30±0.30 |
磁芯参数（Core Set Parameters）
| 规格（Type） | C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | W(g/set) |
| PQ20/16 | 0.60 | 37.4 | 62.0 | 2318.80 | 13.0 |
| PQ20/20 | 0.73 | 45.4 | 62.0 | 2814.80 | 15.0 |
| PQ26/20 | 0.39 | 46.3 | 119.0 | 5509.70 | 31.0 |
| PQ26/25 | 0.47 | 55.5 | 118.0 | 6549.00 | 36.0 |
| PQ27/20 | 0.42 | 48.8 | 119.0 | 5806.8 | 34.0 |
| PQ32/20 | 0.33 | 55.5 | 170.0 | 9435.00 | 42.0 |
| PQ32/25 | 0.38 | 68.2 | 165.0 | 10889.80 | 49.0 |
| PQ32/30 | 0.46 | 74.6 | 161.0 | 12010.60 | 55.0 |
磁芯性能（Electrical Characteristics）
| 规格 （Type） | 材料（Material） | ||||||
| PC30 | PC40 | PC44 | PC45 | 5K | 7K | 10K | |
| AL | AL | AL | AL | AL | AL | AL | |
| PQ20/16 | 3650 | 3350 | 3500 | 3650 |
|
|
|
| PQ20/20 | 3150 | 2900 | 3050 | 3150 |
|
|
|
| PQ26/20 | 5700 | 5250 | 5500 | 5700 |
|
|
|
| PQ26/25 | 5000 | 4600 | 4800 | 5000 |
|
|
|
| PQ27/20 | 5700 | 5250 | 5500 | 5700 |
|
|
|
| PQ32/20 | 6950 | 6400 | 6700 | 6950 |
| 14500 | 19500 |
| PQ32/25 | 5950 | 5475 | 5725 | 5950 |
| 12750 | 17250 |
| PQ32/30 | 4950 | 4550 | 4750 | 4950 |
| 11000 | 15000 |
AL-value( n H/ ±25%):1kHz,0.25V,100Ts,25±3ºC
