EPC Ferrite Core

日期：2014/3/6

If what your need is not listed below, please don't hestitate to contact us.

Direct Factory Price
20-year Produce Experience
High frequency and low-loss
3-time Quality Test
RoSH,SGS
Supply both the ferrite core and bobbin.

EPC磁芯

EPC CORES

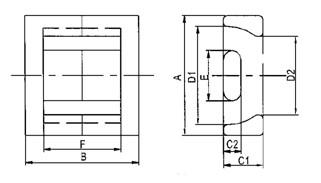

尺寸（Dimensions）

规格（Type）	尺寸（Dimensions） (unit:mm)
规格（Type）	A	B	C1	C2	D1	D2	E	F
EPC13	13.80±0.30	13.20±0.40	6.94±0.15	4.54±0.10	10.96min	8.82min	5.64±0.15	9.80±0.40
EPC14	14.00±0.30	14.20±0.40	7.10±0.15	5.90±0.10	11.60min	10.70min	5.64±0.15	9.90±0.40
EPC17	17.60±0.40	17.10±0.40	6.00±0.15	2.80±0.10	14.80min	12.30min	7.70±0.15	12.10±0.40
EPC19	19.10±0.50	19.50±0.40	6.00±0.15	2.50±0.10	15.80min	13.10min	8.50±0.15	14.50±0.40

磁芯参数（Core Set Parameters）

规格（Type）	C1(mm-1)	Le(mm)	Ae(mm2)	Ve(mm3)	W(g/set)
EPC13	2.45	30.6	12.5	382.50	2.1
EPC14	2.46	30.6	12.5	382.50	2.1
EPC17	1.76	40.2	22.8	916.56	4.5
EPC19	2.03	46.1	22.7	1046.47	5.3

磁芯性能（Electrical Characteristics）

规格（Type）	材料（Material）
	PC30	PC40	PC44	PC45	5K	7K	10K
	AL	AL	AL	AL	AL	AL	AL
EPC13	900	830	870	900
EPC14	900	830	870	900
EPC17	1250	1150	1200	1250
EPC19	980	900	940	980

AL-value( n H/ ±25%):1kHz,0.25V,100Ts,25±3ºC
